Brightness 1800 Nits P4 Indoor Full Color LED Screen CE / ROHS / FCC Approval

Product Categories
Shenzhen TOPLED Optotech Co., Ltd.
Contact Now

Brightness 1800 Nits P4 Indoor Full Color LED Screen CE / ROHS / FCC Approval

Brand Name : TOPLED

Model Number : P4

Certification : CE FCC ROHS

Place of Origin : China (Mainland)

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000 Square Meter/Square Meters per Month

Delivery Time : 10-15 working days after got deposit

Packaging Details : Fight case or Standard wooden box

Name : 1800 Nits Brightness P4 Led Video Wall Full Color Led Display Screen Fixed Installation CE / ROHS / FCC

Usage : Indoor

Material : Iron/Steel

Module size : 256*128mm

Module resolution : 64*32mm

Brightness : 1800nits

Warranty : 2years

Color : Full color

Contact Now




1800 Nits Brightness P4 Led Video Wall Full Color Led Display Screen Fixed Installation CE / ROHS / FCC



4MM Fixed Installation led video wall indoor and outdoor CE / ROHS / FCC



Usage: Indoor Tube Chip Color: Full Color
Display Function: Video,Photo,Live Video Weight Of Cabinet: 35kg/㎡
Cabinet Size: 512x768x80mm Brightness: 1500cd/㎡
IC: MBI5124 Power Supply: Meanwell
Refresh Rate: > 1920Hz Cabinet Material: Aluminum/Steel



Product Description:

High quality:

Use high quality LEDs with high luminous efficiency and low brightness decay to make the display stable.

Good effect:

To show vivid and clear pictures with high resolution, but low cost; Has good display effect in both pictures and letters because of using real pixel technology.




Indoor Curve led display screen p3 p4 p5 p6 p7.62 p10 Specifications:



Pitch 3mm 4mm 5mm 6mm 7.62mm 10mm
Density(dot/sqm) 111111 62500 40000 27777 17222 10000
LED Encapsulation SMD3in1 SMD3in1 SMD3in1 SMD3in1 SMD3in1 SMD3in1
Module Size(mm) 192*192 128*128 160*160 192*192 244*244 320*160
Module Resolution(pixel) 64*32 32*32 32*32 32*32 32*32 32*16
Cabinet Size(mm) 480*480 640*640 800*800 768*768 732*732 960*960
Cabinet Resolution(pixel) 160*160 160*160 160*160 128*128 96*96 96*96
Cabinet Weight(kg) 12 21 32 29.5 27 46
Max Power Consumption(w/sqm) 750 600 500 650 700 500
Ave Power Consumption(w/sqm) 350 250 200 320 350 220
Brightness(cd/sqm) 1500 1200 1500 2000 2000 1500
Gray Scan >4096 >4096 >4096 >4096 >4096 >4096
Refreshrate(Hz) 600-4800 600-4800 600-4800 600-4800 600-4800 600-4800
Best Viewing Distance(m) 3-100 4-100 5-120 6-150 8-150 10-150
Drive Mode Constant Current Drive
Viewing Angle Horizontal:140° Vertical:140°
Protection Level IP43
Working Temperature -20°C-50°C
Working Humidity 10%-60%
Working Voltage AC 110V~220V±10%
Refresh Frame Frequency(Hz) 60
Lifespan 100000hours
Malfunction Dot Rate <0.0002





Our service:



1. Goods be examined before delivery,Professional QC team.



2. Variety of customized products to satisfy different requests.



3. Highest cost-effective price.



4. The price depends on the quantity. We can provide you with the best competitive price in the market with the same or even better quality.

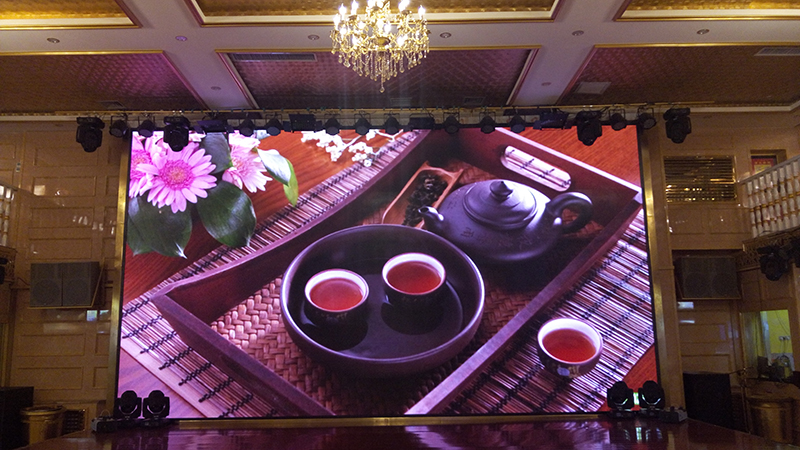

Installation:

Brightness 1800 Nits P4 Indoor Full Color LED Screen CE / ROHS / FCC Approval



Brightness 1800 Nits P4 Indoor Full Color LED Screen CE / ROHS / FCC Approval
